22 Sept 2021 – WW1 Aircraft Electrical Systems, including Radio – Bob Thomson, APSS

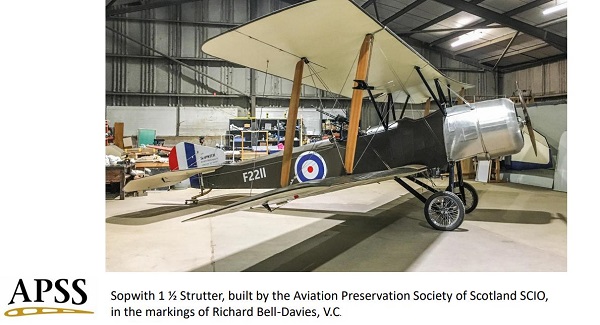

Bob Thomson of APSS (Aviation Preservation Society, Scotland) described the recreation of a 100+ year old plane design: The Sopwith Strutter 1 1/2. The Strutter came before the more famous Sopwith Camel and had a close relationship with this part of the world.

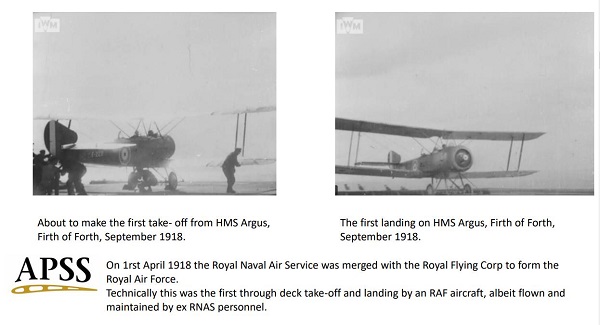

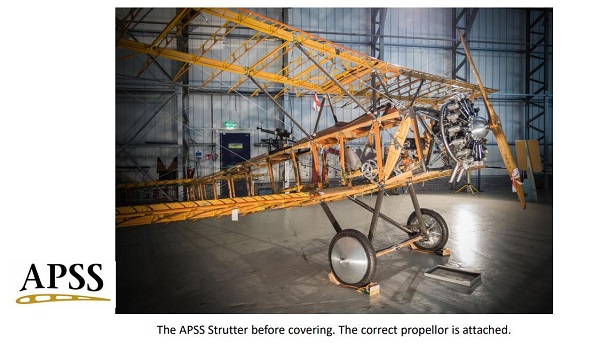

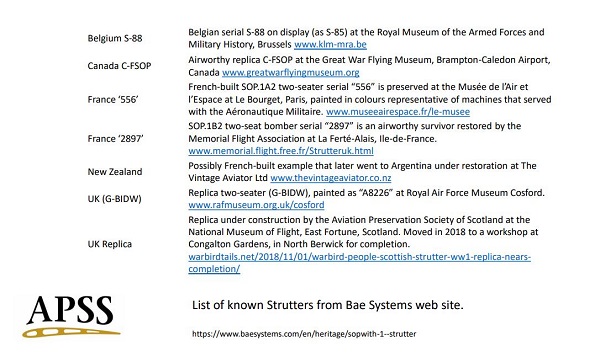

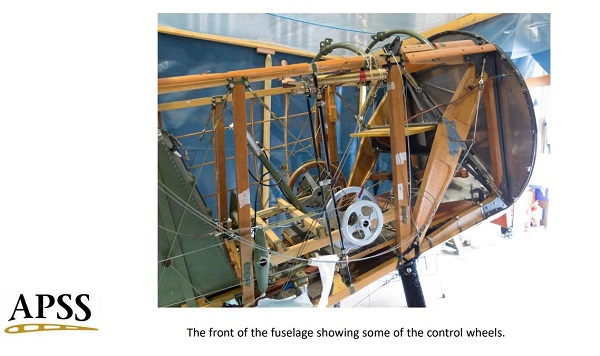

Bob talked about the plane and how it was recreated and the obvious issues that face building a 100 year old design with particular attention being applied to the electrical issues along with how radio was incorporated into the reconstruction.

After his talk, Bob was presented with a donation from the LRS to the APSS preservation fund.

Many thanks to Bob for a most interesting talk and for allowing us to show his slides on the website.

…………………………………………………………………………………………………………………………………………..

 ……………………………………………………………………………………………………………………………………………..

 ………………………………………………………………………………………………………………………………………………..

………………………………………………………………………………………………………………………………………….

 ……………………………………………………………………………………………………………………………………………

 ………………………………………………………………………………………………………………………………………….

 …………………………………………………………………………………………………………………………………….

 ……………………………………………………………………………………………………………………………………….

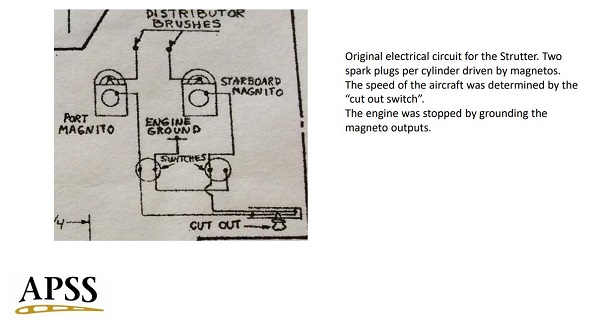

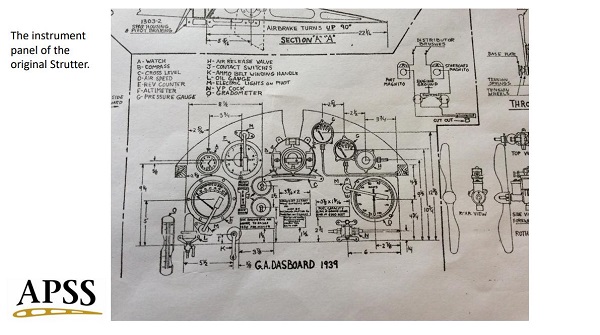

The original electrical system was very simple, if not crude!

 ……………………………………………………………………………………………………………………………………………….



…………………………………………………………………………………………………………………………………………..

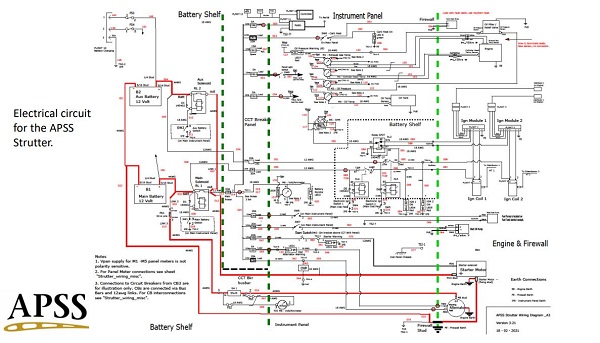

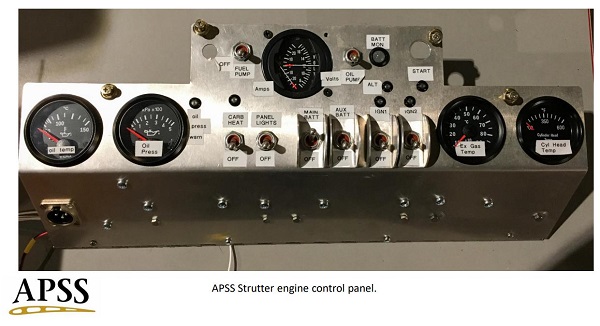

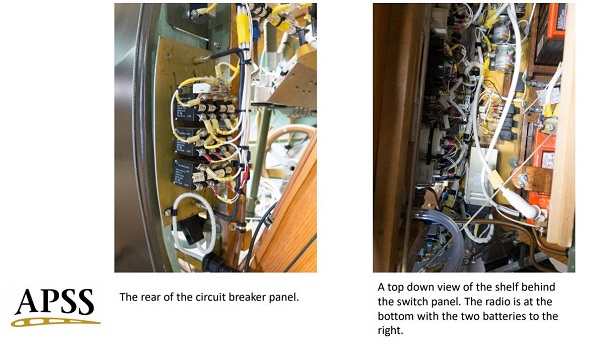

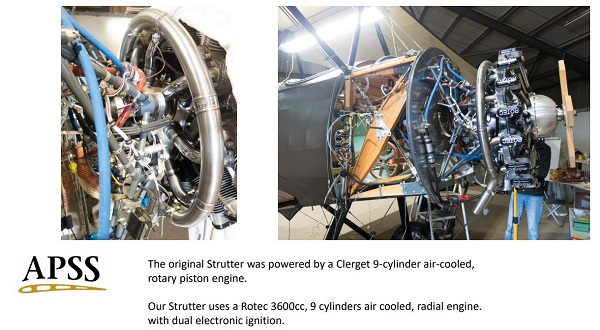

 Of necessity the electrical system in the reconstructed aircraft is more complex

 ……………………………………………………………………………………………………………………………………………..

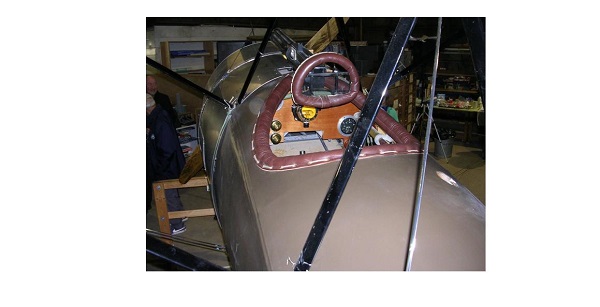

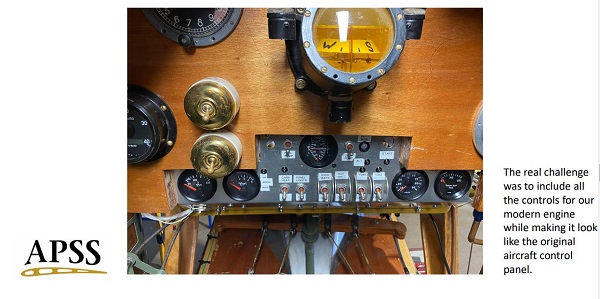

The padding around the windscreen provided protection for the pilot in the event of a sudden stop.

 …………………………………………………………………………………………………………………………………………..

 ………………………………………………………………………………………………………………………………………

 …………………………………………………………………………………………………………………………………………..

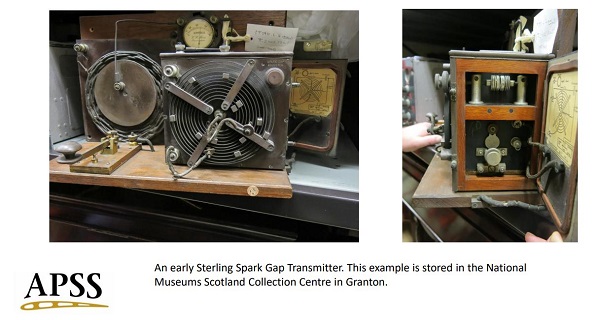

The original radio equipment was a spark transmitter for morse code.

 …………………………………………………………………………………………………………………………………….

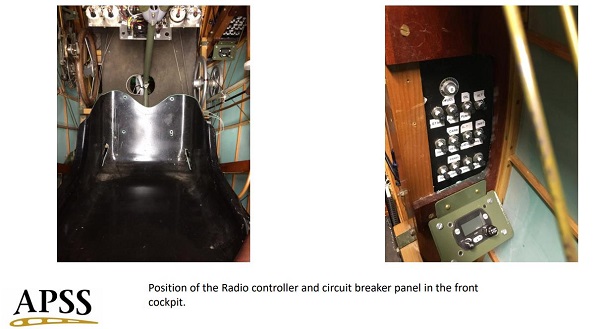

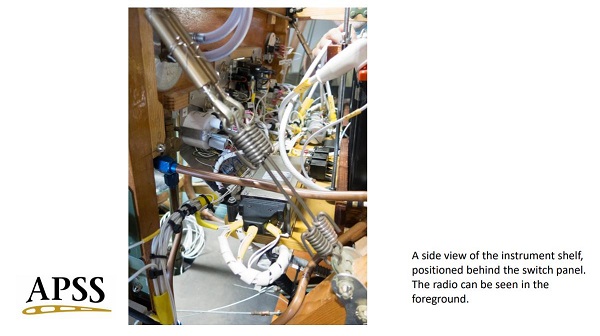

A modern transceiver had to be used in the recreated aircraft.

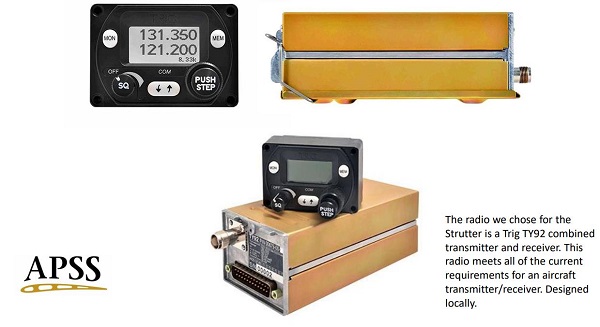

The Trig TY92 is manufactured by Trig Avionics near Edinburgh.

See: https://www.trig-avionics.com/products/

 ……………………………………………………………………………………………………………………………………….



 ………………………………………………………………………………………………………………………………………….



 ……………………………………………………………………………………………………………………………………

 ………………………………………………………………………………………………………………………………………………

 ………………………………………………………………………………………………………………………………………….

LRS program manager James GM4WZP visited the aircraft when arranging Bob’s talk.

 ………………………………………………………………………………………………………………………………………….

 …………………………………………………………………………………………………………………………………………..

Many thanks to Bob for a great talk. He handed out this leaflet encouraging volunteers to join the project. (E-mail Mike apsscoms@virginmedia.com if interested).

======================================================================
