22nd January 2020 – Aircraft Scatter Communication & Useful Test Equipment for It – Pete Bates GM4BYF

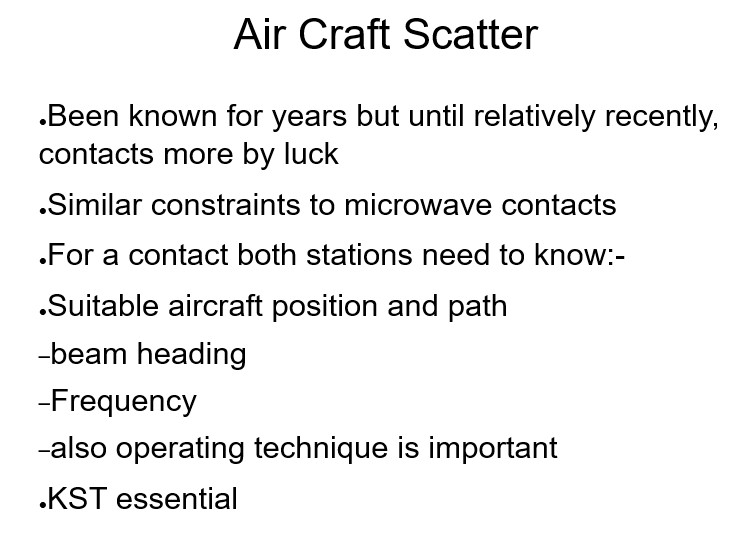

Pete Bates GM4BYF gave a very interesting talk, with audio examples, of the technique of communication by signal scatter from the underside of an aircraft flying between the two stations. He also showed a number of items of test equipment to enable this technique – frequency standard, frequency meter and spectrum analyser, which are now available at remarkably affordable prices.



===========================================

============================

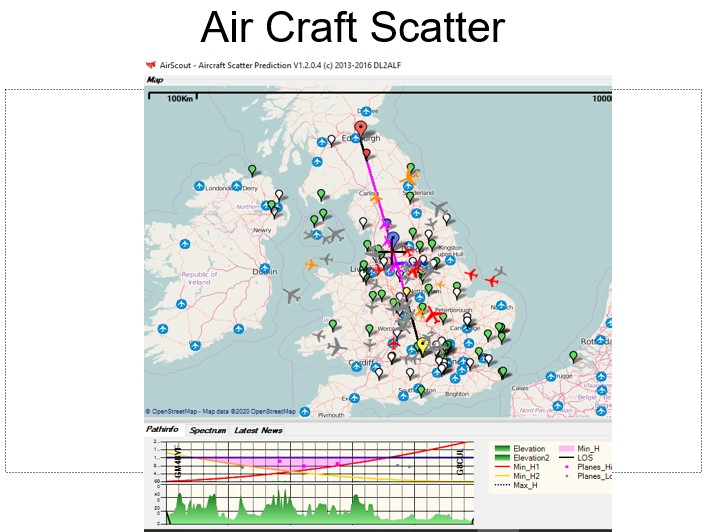

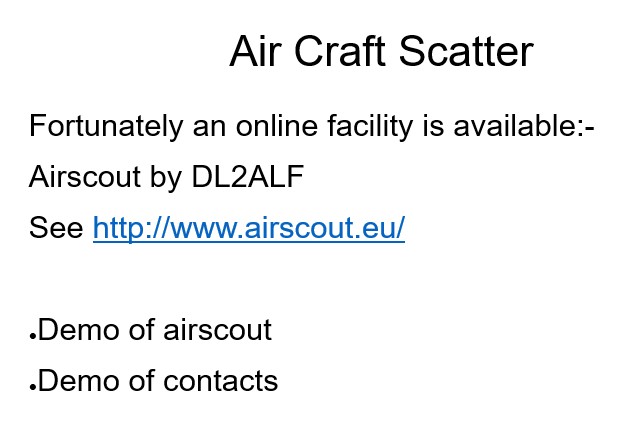

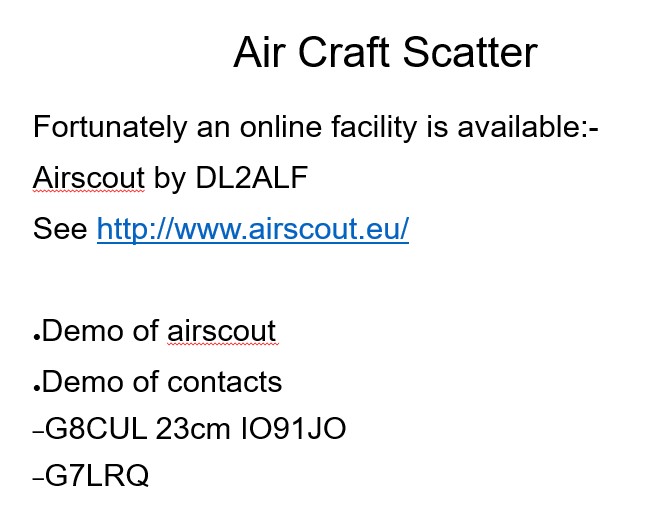

Airscout dynamic display showing the aircraft, identified by size and therefore usefulness for this technique.

==============================================

Pete played audio recordings, with signal strength displays of two aircraft scatter QSOs on 23cm.

Click for the recording of the G7LRQ QSO.

==================================================

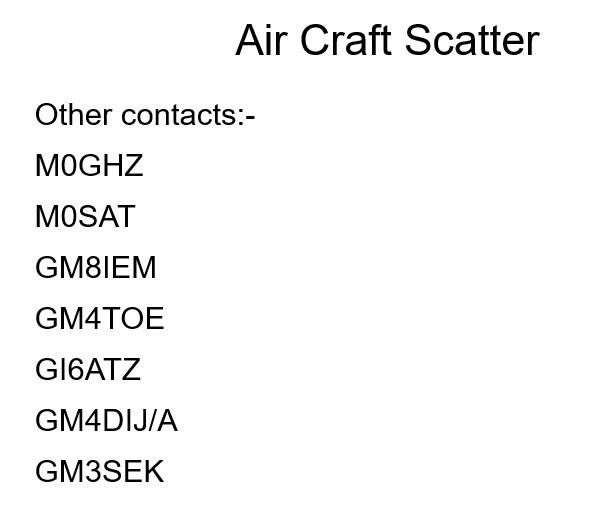

QSOs with other stations located at distances up to 500km and screened by mountains, would not normally be possible without this technique.

============================================

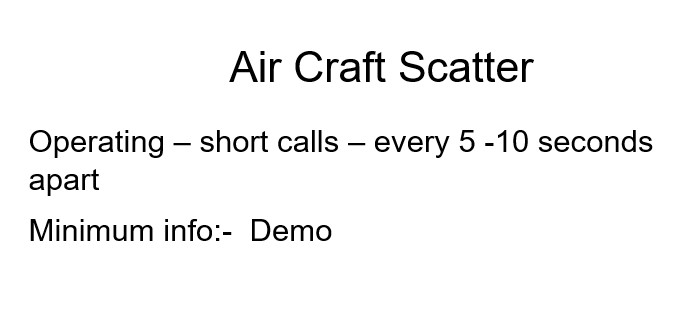

An aircraft Scatter QSO is scheduled in advance with the exact frequency specified.

CW can be used but Pete chose SSB as a more practical mode.

===============================================

==============================================

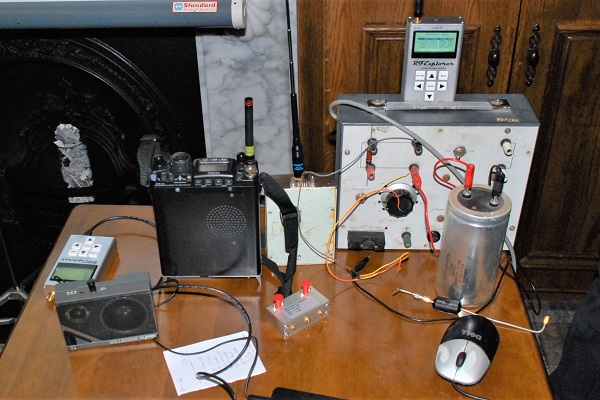

Pete’s test equipment to enable aircraft scatter communication: frequency standard, frequency meter and spectrum analyzer.

====================================================

=======================================================

===========================================

=============================================

==================================================

Many thanks to Pete for a very well-prepared and presented talk.

==================================================

Ray James GM4CXM gave a talk on 70cm and 23cm on 9th March 2011 in which he described his work with aircraft scatter, but there are only one or two slides about it. (Click).

==================================================
